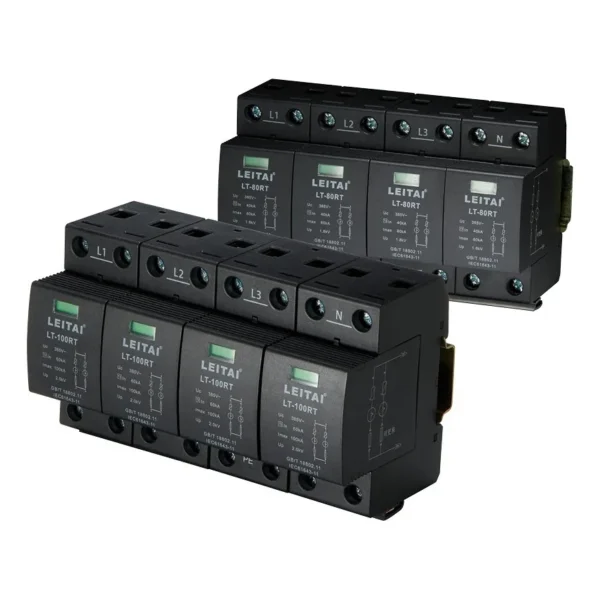

LT-80RT Series Type 2 Replaceable Surge Protector 100kA
A Type 2 surge protection device used for primary as well as secondary board distribution, directing surge current to ground as well as restricting the voltage of the downstream equipment. As a factory-direct SPD manufacturer and supplier, Leitai Electric offers its clients top-notch surge protection devices with a huge range of customization options and excellent price as well as complete technical reports.
Applications & circuit protection
The LT-80RT / LT-100RT is used wherever high-performance changeable Type 2 protection is required with a peak discharge rating of 100kA to protect major distribution systems and industrial boards. Typical use includes the following installations.
- Main switchboards: High-performance changeable protection.
- Industrial installations: Protection of power supply lines for processes.
- Heretical services: Fast module replacement.
- OEM switchgear: Built in OEM panels.

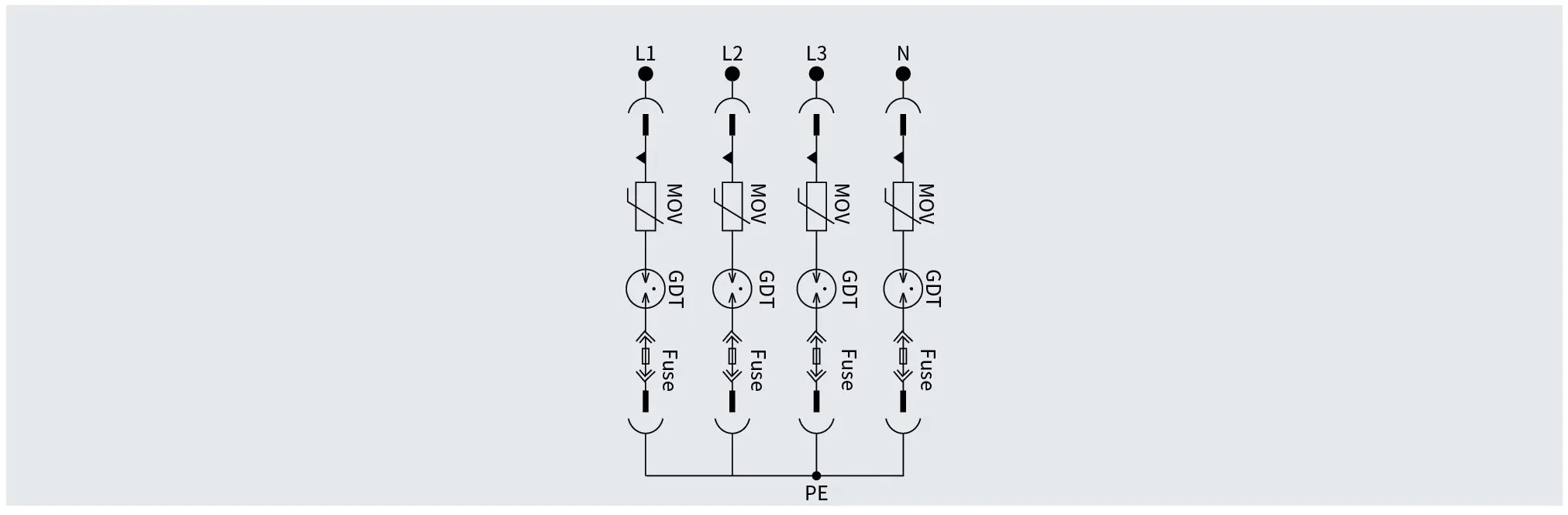

Schematic Diagram
The schematic diagram above shows how the internal protection circuit works and the modes of connection for the LT-80R / LT-100RT surge suppressors.
Construction & operating reliability
Incorporated with highly efficient MOV components and an inbuilt heat disconnection device, the LT-80RT / LT-100RT is a reliable protector that shows high clamping performance with prolonged durability. Each of the surge protection devices is manufactured, aged and passed the impulse test prior to shipment along with keeping the records of every test performed.
- High-efficiency MOV element for quick response.
- Thermostatic disconnection system with visual malfunction signaling.
- IP20 protective case, Fire-retardant UL94 V0.
- Meets IEC 61643-11/however GBT 18802.11 standards requirements.
Replaceable Surge Protector Specifications & Technical Data
| Technical Data | Value |
|---|---|
| Uc | 275/385/440V |
| In | 40kA |
| Imax | 80kA |
| Up | 1.8kV |
Replaceable Surge Protector for Sale: Factory Pricing & Sales Support
The prices for the LT-80RT and LT-100RT are sourced from factory price lists based on their specifications and quantity and interested customers can contact the factory’s export department for an official price for bulk purchase and pricing for other orders.
- Standard factory quotations
- Custom specifications and bulk pricing
- Official price quote according to request
Replaceable Surge Protector Wiring, Installation & Connection Guide
The LT-80RT / LT-100RT SPD is wired with the protection circuit and grounded via the PE terminal. The connection leads should be of minimal length so that the residual voltage can be kept to a minimum value. For TN systems, it is important to connect the L, N and PE terminals according to the wiring diagram that has been provided.
- Parameters for connection via the PE terminal
- External disconnector should be used according to the specification
- Wiring diagram has been provided along with the product

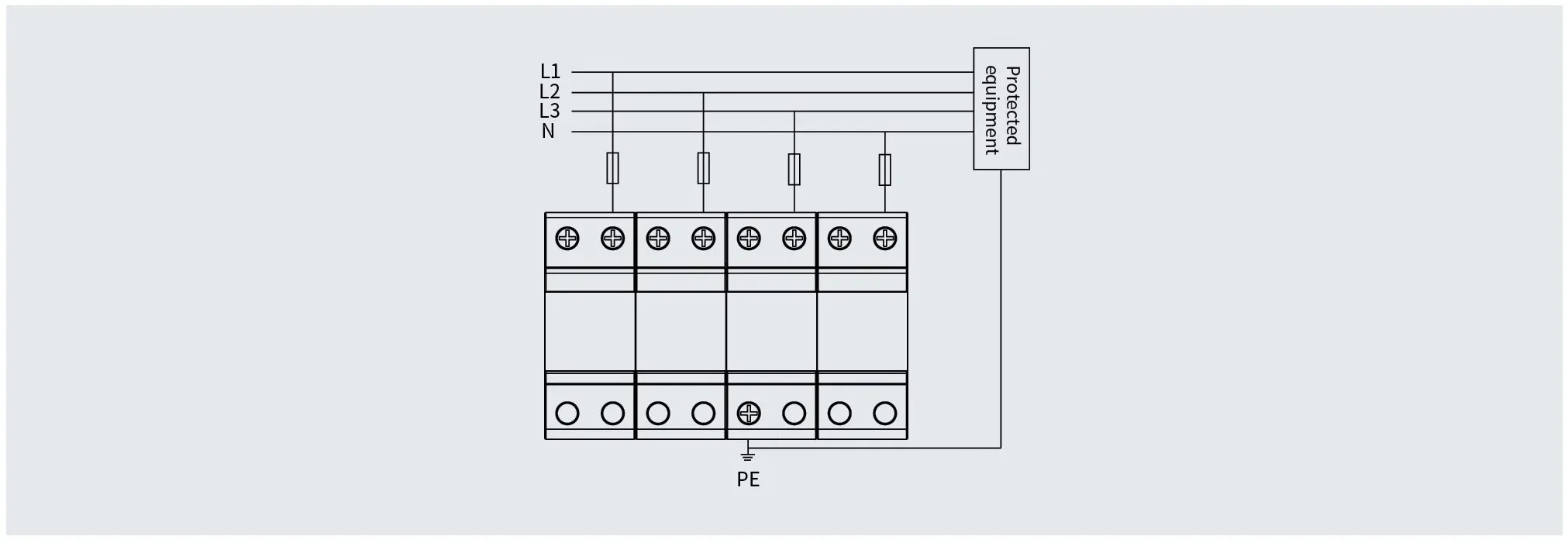

Wiring Diagram
The above connection layout provides a recommended connection for the LT-80RT / LT-100RT in a regular distribution panel, with L, N, and PE points designated per typical standards.
How Does Replaceable Surge Protector Compare to Alternative Protection?
Select the SPD considering the type of the device and its discharge capacity rating as well as voltage rating. Type 3 devices protect terminal equipment, Type 2 devices, protect distribution therewith Type 1 discharges lightning current at the source.
| Feature | This SPD | Alternative |
| Type | Type 2 (T2) SPD (Replaceable) | Other SPD types available |
| Discharge capacity | 40kA / 80kA | Matched to network duty |
| Protection level | 1.8kV | Lower Up options available |
| Application | Replaceable Heavy Duty | Other installation types |
Export Markets & Country Compatibility
SPDs are sent by us to distribution partners all over the world according to the supply voltage, earthing system and market standards of the country of destination.
SPD Dimensions, Weight & Packing
The LT-80RT / LT-100RT are compact and modular and are installed on the DIN rails of the panel boards. All the dimensions and packing information of the product is provided in the product specifications.
- Compact size for mounting on DIN rails
- Terminals protected while in shipment
- Scale representation included with each model

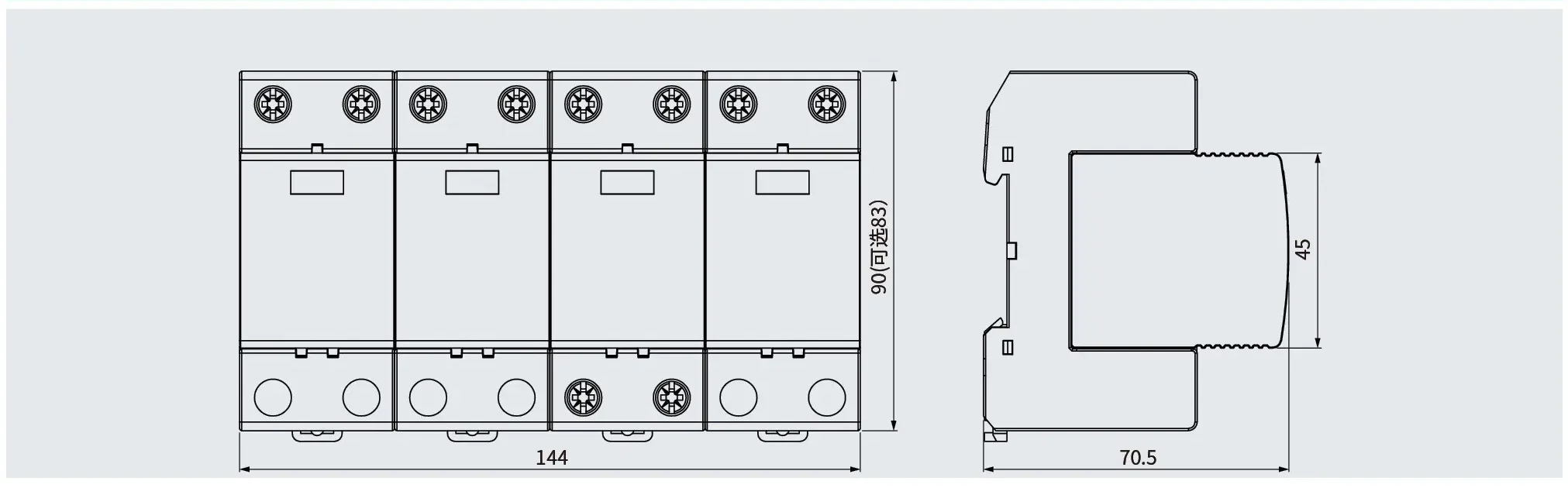

Dimensional Drawing
The illustration presented depicts the footprint for installation purposes of LT-80RT / LT-100RT in regards to DIN rail mounting and panel design and layout.
Standards & certifications
LT-80RT / LT-100RT surge protection device is manufactured according to the IEC 61643-11 and GB/T 18802.11 standards. The type test and routine test documentation can be provided according to the requirements of the project and the market of destination.
- Standards: IEC 61643-11 / GB/T 18802.11.
- Certifications: TUV, CE and CQC (for each model).
- Marking of terminals and polarity in compliance with standards.
- Designed for mounting on DIN rails in distribution boards.
OEM & B2B supply support
From single units to shipment quantities, our manufacturing personnel assist suppliers, OEMs and project buyers.
If the model LT-80RT / LT-100RT is not suitable for your project, please inform us of the model, material requirements, output, voltage and quantities required, and we will assign a sales manager to deal with your request.
- Few samples may be provided for product evaluation.
- Order flexibility applies regarding the quantity of the ordered product.
- OEM and ODM services available.
- We can offer marking, packaging, and branding services.
- We provide our clients with the necessary technical documentation and certification.
Replaceable Surge Protector FAQs: Common Buyer Questions Answered
What do In and Imax mean?
In indicates the nominal discharge current when measured over 8/20us time; while Imax indicates the maximum discharge current that an SPD can withstand one time only.
Does the LT-80RT / LT-100RT have a failure indicator?
Yes, the device has indicators that provide an indication of failure visually as well as an internal thermal disconnection for ends of life indication.
What is a Type 2 SPD used for?
The function of a Type 2 SPD consists in providing protection of low-voltage distribution equipment and equipment downstream against switching surges and lightning induced transients.
Which earthing systems does it support?
The LT-80RT / LT-100RT model provides support for TN, TT and IT in accordance with enabled modes of protection (L-N, L-PE, N-PE).
Can I order samples for testing?
Yes, you can ask for samples, OEM support and wholesale offers for B2B.
