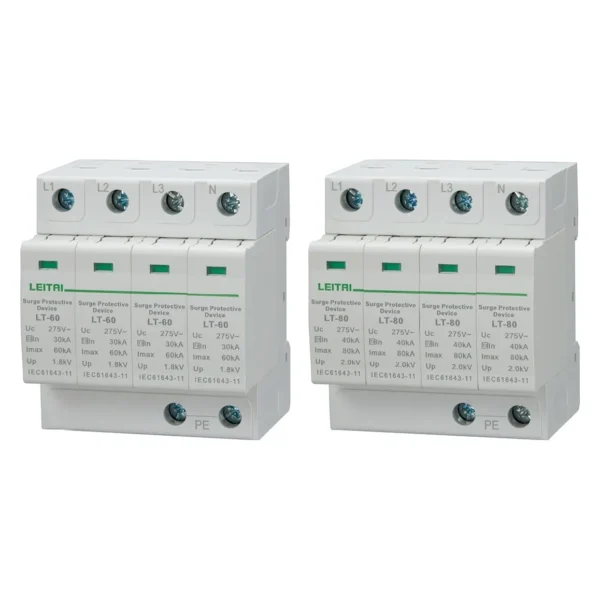

LT-60 Series Type 2 Heavy Duty Surge Protector 160kA
A Type 2 surge protection device that is put in place at the level of the distribution board so that it clamps switching and the effects of induced lightning before they affect downstream equipment Leitai Electric is a manufacturer and supplier of surge protection devices based in China with resources in OEM, wholesaler and distributor programs around the world.
Applications & circuit protection
LT-60 to LT-160 is used in places where heavy duty Type 2 protection is needed for industrial and commercial installations with energy consumption of up to 160kA Imax. These installations are often used for the following purposes.
- Heavy industry: High energy industrial supply protection.
- Main switchboards: Large capacity incoming protection.
- Data centres: High availability facility power.
- Infrastructure: Water, rail and utilities.

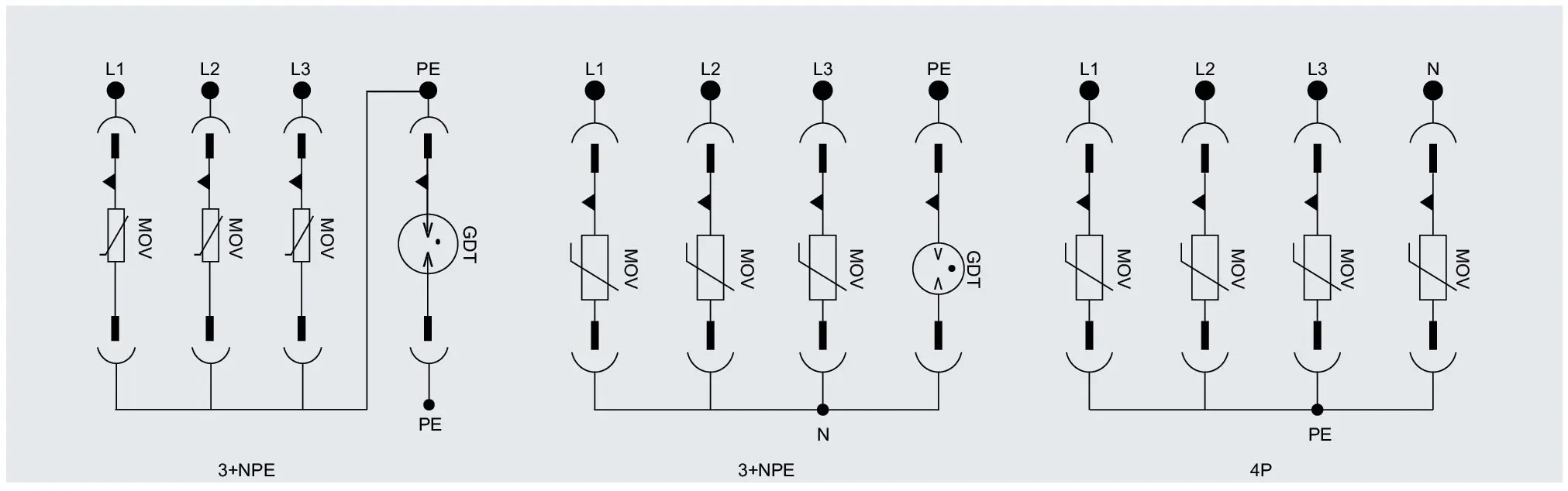

Schematic Diagram
The schematic diagram provided illustrates the various connection methods and the internal protection circuit of the surge protective devices having ratings from LT-60 to LT-160.
Construction & operating reliability
The LT-60 to LT-160 is made of high energy MOV components and an internal thermal disconnector, thus ensuring good clamping characteristics, as well as long lifespan. Specialized production facilities and dedicated quality control procedures at every stage of production guarantee consistent output of surge protection devices.
- High energy MOV for quick response to surges.
- Thermal disconnection device with a visible failure indicator.
- Housing rated IP20 and flame-resistant according to UL94 V0.
- Passed tests under IEC 61643-11 / GB/T 18802.11 standards.
Heavy Duty Surge Protector Technical Specification & Selection Guide
| Technical Data | Value |
|---|---|
| Uc | 385/440V |
| In | 30kA |
| Imax | 60kA |
| Up | <2.2/2.5kV |
| ta | <25ns |
Where to Buy Heavy Duty Surge Protector at Factory Sales Prices
We are quoting you prices for the LT-60 to LT-160 series based on the configuration and the quantity according to our price list. Please contact our export office for a written quotation with pricing for volume purchases on orders from distributors and project buyers.
- Standard quotations from factory pricing
- Customized configurations and volume pricing for the orders
- Written quote on your order
Heavy Duty Surge Protector Connection & Installation Basics
Connect the LT-60 and LT-160 SPD system among the essential elements of the power supply facility using leads of the shortest possible length. Electric polarity and torque parameters must be chosen according to the manufacturer’s guidelines and both current and earth wiring must use the proper external disconnector.
- Parallel connection with short wires to PE terminal
- External disconnector as indicated in the manuals provided
- Wiring instructions provided in documentation

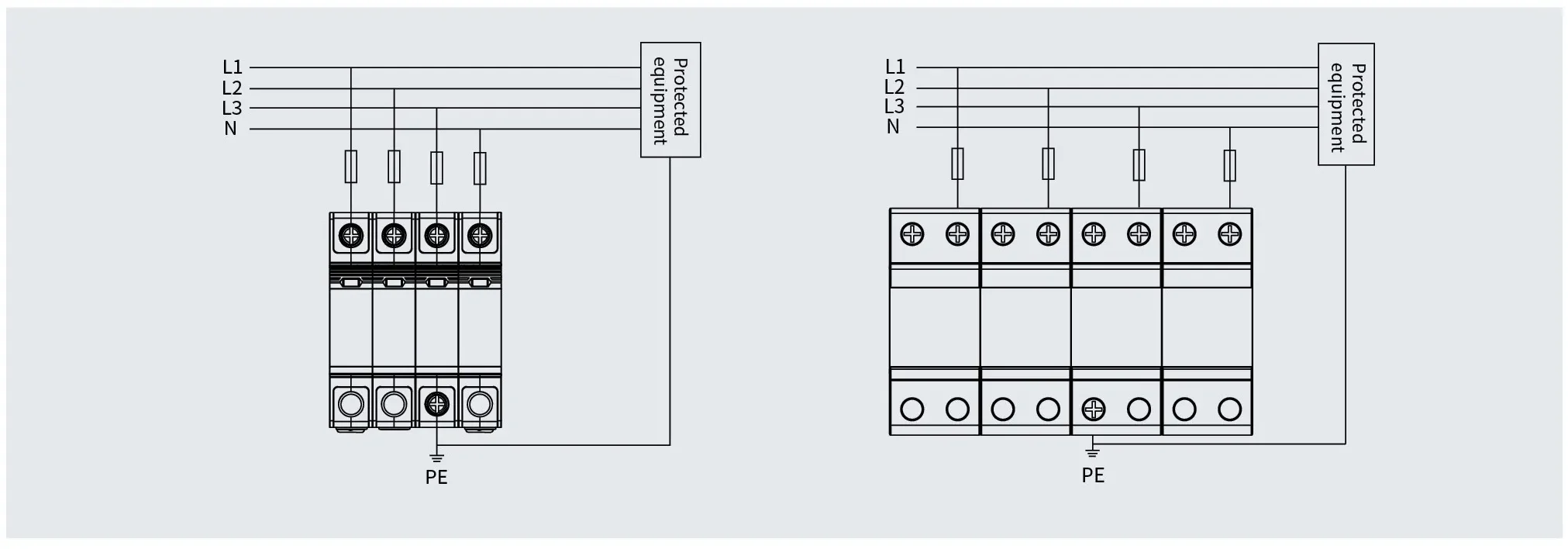

Wiring Diagram
The wiring chart above illustrates how the LT-60 and LT-160 should be wired in an ordinary distribution board with standard markings for lines and neutral as well as protective Earth connections.
How Does Heavy Duty Surge Protector Compare to Alternative Protection?
While comparing different surge protection devices, make sure to look out for their protection level (Up), discharge capacity (In/Imax or Iimp) and the relevant standard as our team can offer recommendations on how to properly configure your system.
| Feature | This SPD | Alternative |
| Type | Type 2 (T2) SPD (Heavy Duty) | Other SPD types available |
| Discharge capacity | 30kA / 60kA | Matched to network duty |
| Protection level | <2.2/2.5kV | Lower Up options available |
| Application | Heavy Duty | Other installation types |
Export Markets & Country Compatibility
All of our surge protection devices are shipped to our distribution partners all around the world with configurations aligned to local voltage, earthing systems and standards in that market.
SPD Dimensions, Weight & Packing
Compact and modular, the LT-60 to LT-160 mounts directly onto DIN-rail in destination cabinets. All dimensional data and packing information is provided with the product documentation.
- Compact DIN-rail designed for panel mounting
- Protection of terminals during shipment
- Dimension drawing included for each model

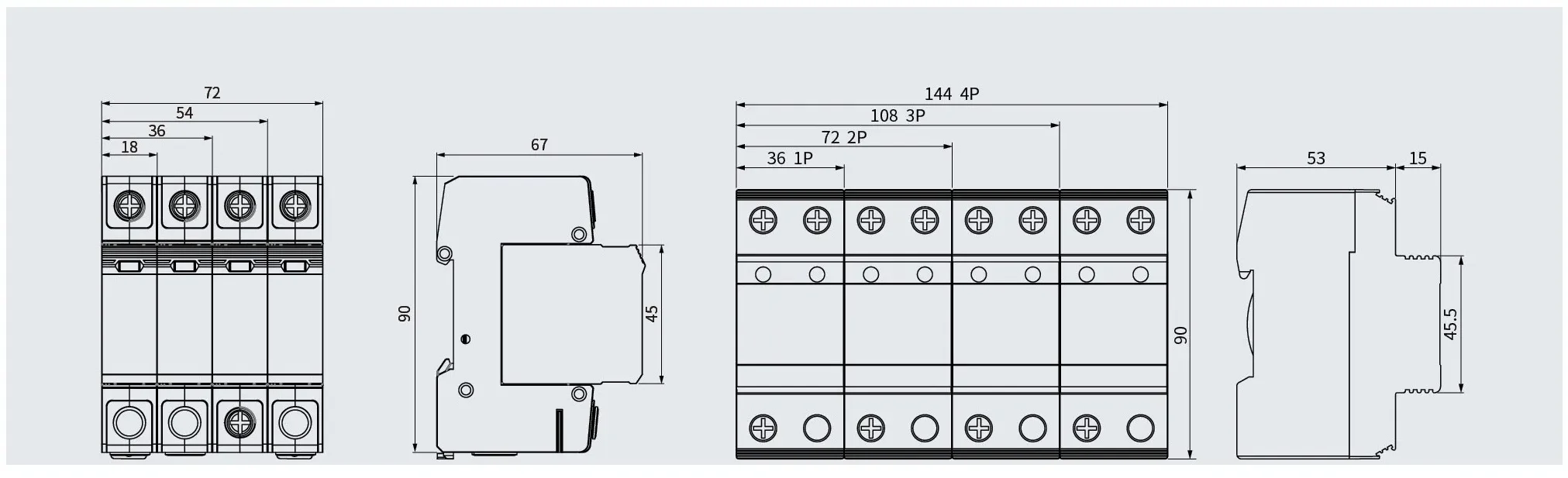

Dimensional Drawing
The dimensional diagram shown above presents the mount size of LT-60 to LT-160 for the installation on the DIN rail and planning of the panel.
Standards & certifications
The LT-60 to LT-160 surge protector has been manufactured according to the requirements of IEC 61643-11 and GB/T 18802.11. The type-test and routine-test documents are available on demand in accordance with project requirements and destination country.
- Standards: IEC 61643-11 / GB/T 18802.11.
- Certifications: TUV, CE, CQC (according to the model).
- Terminals and polarity markings according to normal practice.
- Can be installed on a DIN rail in the distribution board.
OEM & B2B supply support
Leitai offers all kinds of OEM/ODM projects along with program for wholesale and distributor leaded type surge protectors from the manufacturing base in China.
If our configuration of LT-60 to LT-160, does not conform to yours, you may send us your specification like type, discharge current capacity, voltage, and the quantity. Our export sales team will assist you in choosing your required SPD and will offer technical information as well as commercial terms.
- Sample can be supplied for the product trial.
- Flexible volume for either project purchase and B2B purchasing.
- We support OEM and ODM projects.
- Custom markings and custom-made packaging solutions are available.
- Technical information and certification support.
Heavy Duty Surge Protector Buyer FAQ: What You Need to Know
Where should the LT-60 to LT-160 be installed?
The installation of LT-60 to LT-160 should take place in the DIN rail of the distribution board, either main or sub-distribution, very close to the point where the incoming supply connects. The leads to earth must be kept short at that place.
What do In and Imax mean?
In refers to the nominal discharge current (8/20us) that is applicable for continued use; Imax refers to the maximum discharge current that can be tolerated by the SPD only.
Which earthing systems does it support?
it supports TN, TT and IT type systems depending on the configuration mode that the system supports.
Can I order samples for testing?
Yes. Samples, OEM/ODM support and wholesale pricing for B2B customers are offered.
Does the LT-60 to LT-160 have a failure indicator?
Yes, the device has visual end of the life indicator along with internal thermal disconnect material.
